Newport定制组件解决方案

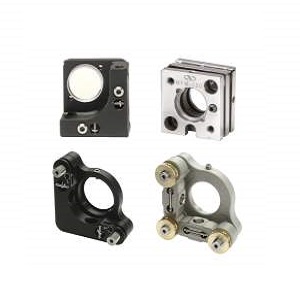

Newport offers standard mounts and accessories designed for "set-and-forget" OEM applications. These products all include the key features of compact/space-saving geometry and locking Allen-Key adjustments, and certain products include additional elements such as alignment pin holes, adhesive wells, and extra stiffness. Kinematic, flexure and platform are typical for OEM applications.

导出PDF

类别	描述
	Compact/Space-Saving Geometry OEM optical systems are often constructed in tight or restricted spaces. As such, every inch of real estate is precious, so compact components that meet performance requirements are desired. Newport offers high precision mounts with slimmer profiles and smaller footprints.
	Locking Allen-Key Adjusters Newport's OEM mounts use locking Allen-Key adjusters, which provide two benefits. Firstly, they are compact, saving space and allowing placement in tighter areas. Secondly, locking Allen-Key adjusters prevent unintended adjustment, providing users with a "set and forget" capability.
	Alignment/Keying Pin Holes Optical mounts are often placed directly on a base or platform of an OEM optical system (i.e., they are usually not post-mounted). To aid in system construction, some of OEM mounts include alignment pin holes on the bottom of the mount to enable keying of the position and orientation by means of dowel pins. This results in repeatable system integration and prevents clocking effects. (Note: Dowel pins not included with mounts.)
	Adhesive Wells in Aperture Epoxying an optic in place can improve performance and stability for OEM applications. Some of OEM mounts include adhesive wells in the aperture to facilitate bonding the optic to the mount.
	Extra Stiffness for Stability One way to enhance long-term stability is with extra stiff springs, which can better resist misalignment from shock and vibration. Another method to improve stability is through choice of construction material. Stainless steel is more stiffer than aluminum, so it flexes less and allows easier alignment. Furthermore, stainless steel's coefficient of thermal expansion is lower than aluminum, making it more stable during temperature fluctuations.
	Flexure Mounts By presenting only the features intended for "set and forget" capability (and eliminating many features desired in research applications), flexure mounts are designed for OEM applications. The spring-steel element of a flexure mount provides the means for angular positioning. The double-duty ability of the flexure provides both guided rotation as well as the spring force, enabling a compact design.
	Environmental and Other Features Newport offers standard, low-outgassing OEM mounts compatible with vacuum and clean environments. Mounts also incorporate performance features for OEM applications, such as Low Wavefront Distortion mounts that hold optics in a way that minimizes wavefront distortion. Mounts feature 100-TPI adjusters, and for higher precision, some include 127-TPI adjusters.
