Minus K CT-2 桌面隔振台

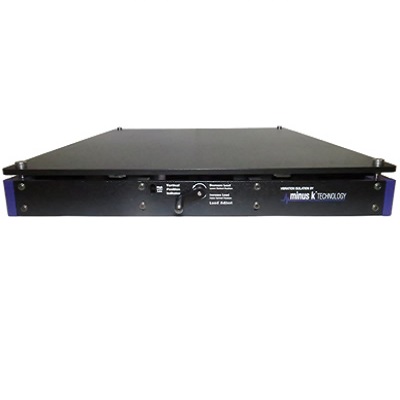

桌面(CT-2)采用了Minus K技术,2.7英寸高的隔离平台。

该设备是从Minus K的CT-1升级而来,为更重的仪器提供额外的有效载荷范围。

适用于台式显微镜。 使用简单,不需要空气和电。


导出PDF


The Compact Tabletop (CT-2) uses Minus K'stechnology allowing for the good performance on the market in just a 2.7 inch tall isolation platform. This unit is an upgrade from Minus K's CT-1 and offers good horizontal performance with additional payload ranges for heavy instruments.


This passive mechanical isolator does without air or electricity.


This vibration isolation platform is easy to use and offers 0.5 Hz vertical natural frequency and ~1.5 Hz horizontal natural frequency. There are two adjustments.


The curves below shows the 1/2 Hz performance of the CT-2.






Weight: Approximately 30 lb (13.6 kg)

Dimensions:
18" W x 20" D x 2.7" H
(457mm W x 508mm D x 68.6mm H)

Approximate payload weight range:
Model Payload Range*
30CT-2
18 - 31 lb
(8.2 - 14 kg)
60CT-2
42 - 70 lb
(19 - 31.7 kg)
100CT-2*
68 - 104 lb
(31 - 47 kg)
150CT-2*
112 - 158 lb
(51 - 71.5 kg)
200CT-2*
155 - 210 lb
(70.5 - 95.2 kg)
250CT-2**
205 - 252 lb
(93 - 114.3 kg)
*Weight: Approximately 43 lb. (19.6 kg)/(same dimensions)
**Weight: Approximately 48 lb. (21.9 kg)/(same dimensions)

Performance

  • Horizontal frequencies are weight dependent.

  • Horizontal frequency of ~1.5 Hz is achieved at or near the upper limits of the payload range.

  • At the lower payload weights the horizontal frequency will increase.

  • Vertical frequency is tunable to 0.5 Hz throughout the payload range.

Simple Set-Up and Adjustment
