CM-1是一个紧凑的高负载，低频负刚度隔振器。 与所有的负K隔振器一样，它们是被动的，不使用空气或电力。
可以组合成多个隔振器系统，以支持沉重的有效载荷，同时占用小空间。
Low frequency vibration isolator for weight loads from 50 to 1050 lbs. and 1/2 Hz performance vertical and horizontal.

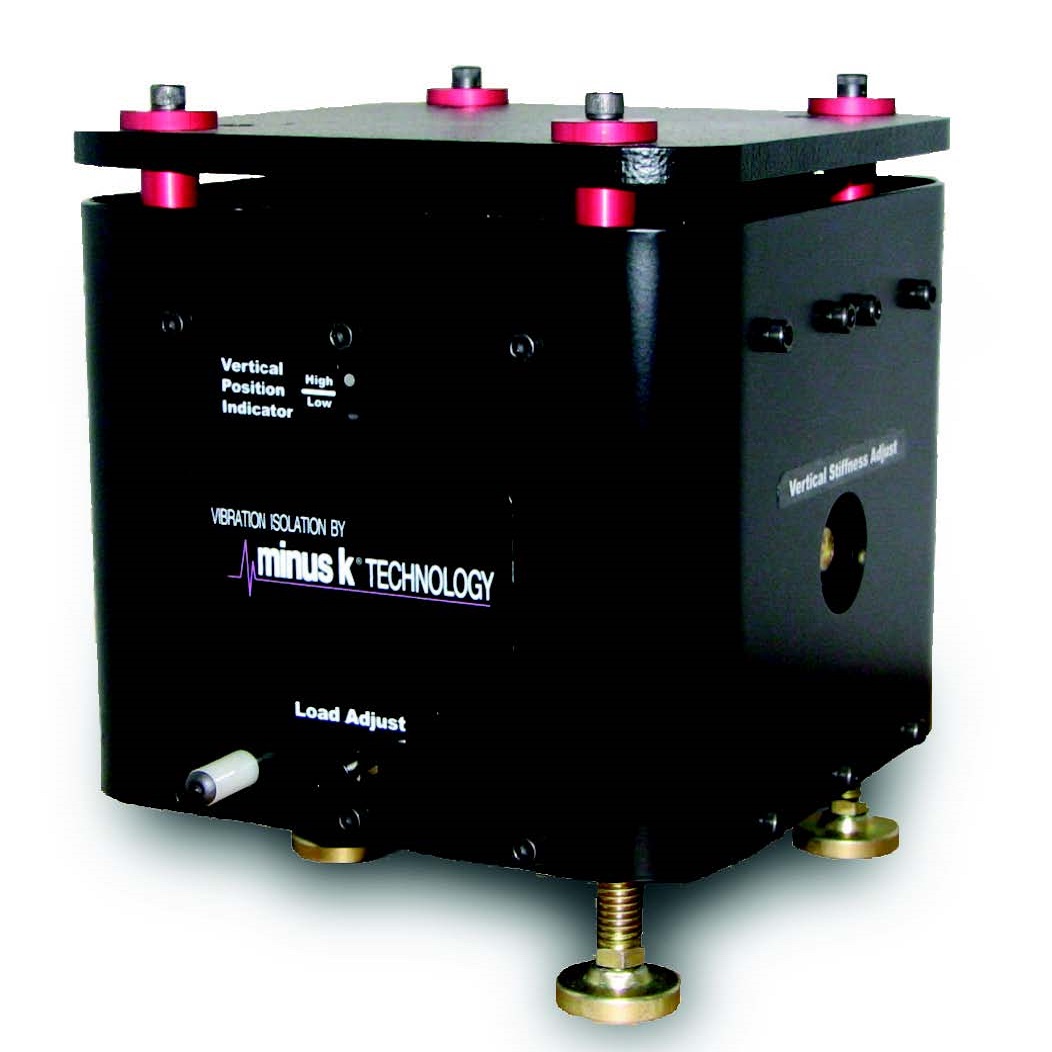

The CM-1 is a compact high capacity, low-frequency negative-stiffness isolator. As with all Minus K isolators, they are passive and use no air or electricity. The isolators can be combined into multi isolator systems to support heavy payloads while taking up little room themselves.
The CM-1 isolators can be placed on pedestals to bring them to an appropriate height to retrofit your existing air table, enabling you to keep your existing table top and achieve isolation.
The CM-1 isolators come in several capacity ranges to match your vibration-sensitive instruments such as SPMs (AFMS, STMs, etc), micro-hardness testers, profilers, interferometers, electron microscopes, or other imaging systems.
If needed, the CM-1 isolators can be customized to achieve user needs. Eg., different horizontal and vertical frequencies, damping, etc. They can also be made cleanroom and vacuum. compatible.
See a typical performance curve for this product.
The curves below shows the 1/2 Hz performance of the CM-1.
| Weight: Approximately 26 lb (11.8 kg) | |
|
Dimensions: |
|
| Approximate payload weight range: | |
| Model | Payload Range* |
| 200CM-1 |
50 - 200 lb
(22.7 - 90.7 kg)
|
| 500CM-1 |
200 - 500 lb
(90.7 - 226.8 kg)
|
| 800CM-1 |
500 - 800 lb
(226.8 - 362.9 kg)
|
| 1000CM-1 |
750 - 1050 lb
(340.2 - 476.3 kg)
|
|
Performance |
|
|
|
| Simple Set-Up and Adjustment | |
