MinusK BM系列台式隔振台

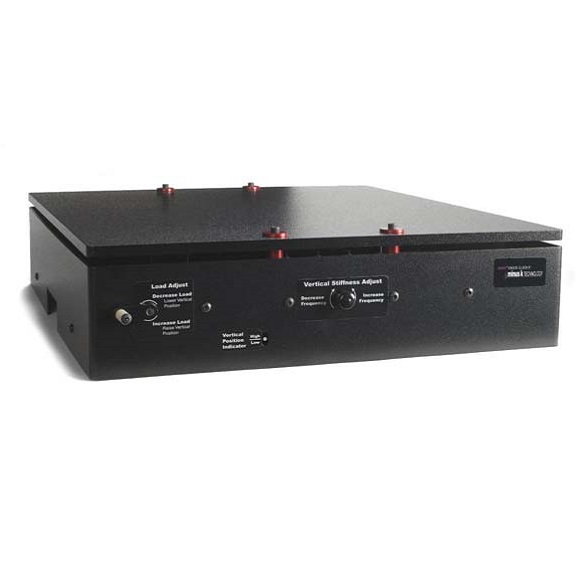

BM-1 Bench Top Vibration Isolation Platform

Our bench top isolator for weight loads up to 1000 lb. and 1/2 Hz performance vertical and horizontal.

• No Air or Electricity

• Vertical Load Adjustment Crank - Simple manual adjustment compensates for changes in vertical load.

• Vertical Load Adjustment Indicator - Easily determine optimum setting using this simple visual indicator.

• Vertical Stiffness Adjustment Screw - Dial in 1/2 Hz or less Vertical natural frequency using this simple adjustment.

• They can also be made cleanroom and vacuum compatible.



The curve below shows the typical vertical 1/2 Hz performance of the BM-1.

BM-4 Bench Top Vibration Isolation Platform

• The bench top platform capable of 1/2 Hz performance vertical and horizontal.  It also does this without any air or electricity.

• They can also be made cleanroom and vacuum compatible.

The curve below shows the typical vertical 1/2 Hz performance of the BM-4.

BM-6 Bench Top Vibration Isolation Platform

• The BM-6 bench top platform offers fine performance in a package only 4.6 inches tall, and without air.

• This vibration isolation platform is easy to use. It offers a 1.5 Hz horizontal natural frequency and a 2.5 Hz vertical natural frequency. There is only one adjustment. There is no need for air or electricity.

The curves below demonstrate the performance that the BM-6 can delivers. Vertically, the BM-6 offers a resonant frequency, horizontally, the BM-6 offers the performance which can have horizontal frequencies as high as 4-5 Hz.

BM-8 Bench Top Vibration Isolation Platform

• The BM-8 bench top platform offers fine performance in a package only 4.6 inches tall, and without air or electricity.

• This vibration isolation platform is easy to use. It offers a 1.5 Hz or lower horizontal natural frequency and 0.5 Hz vertical natural frequency. There are only two adjustments.

• They can also be made cleanroom and vacuum compatible.

The curve below demonstrates the vertical 1/2 Hz performance of the BM-8. The BM-8 delivers the high performance of our larger isolators in a package only 4.6 inches tall. The horizontal performance of the BM-8 is the same as that of the BM-6.

BM-10 Bench Top Vibration Isolation Platform

• The BM-10 bench top platform offers fine performance in a package only 4.6 inches tall and 12 inches wide and deep.  It also does this without any air or electricity.

• This vibration isolation platform is easy to use. It offers a 1.5Hz horizontal natural frequency and 0.5 Hz vertical natural frequency.  There are only two adjustments.  The BM-10 is for new generations of small SPM's.

• They can also be made cleanroom and vacuum compatible.

The curve below shows the vertical 1/2 Hz performance of the BM-10.The horizontal isolation performance of the BM-10 is the same as that of the BM-6.
